Backstage

Port's Backstage integration allows you to model Backstage resources in your software catalog and ingest data into them.

Overview

This integration allows you to:

Map and organize your desired Backstage resources and their metadata in Port (see supported resources below).
Watch for Backstage object changes (create/update/delete) in real-time, and automatically apply the changes to your entities in Port.

Supported Resources

The resources that can be ingested from Backstage into Port are listed below. It is possible to reference any field that appears in the API responses linked below in the mapping configuration.

Prerequisites

Create a Backstage token

Port will authenticate to Backstage via static tokens.
Configure a token for Port using the following Backstage configuration:

backend:
  auth:
    externalAccess:
      - type: static
        options:
          token: YOUR-TOKEN
          subject: port-ocean-access

Replace YOUR-TOKEN with your Backstage token.
To create a token, Backstage recommends to use the following command:

node -p 'require("crypto").randomBytes(24).toString("base64")'

Setup

Choose one of the following installation methods:

Real-time (self-hosted)
Scheduled (CI)

Using this installation method means that the integration will be able to update Port in real time using webhooks.

Prerequisites

To install the integration, you need a Kubernetes cluster that the integration's container chart will be deployed to.

Please make sure that you have kubectl and helm installed on your machine, and that your kubectl CLI is connected to the Kubernetes cluster where you plan to install the integration.

Troubleshooting

If you are having trouble installing this integration, please refer to these troubleshooting steps.

To install the integration using Helm:

Go to the Backstage data source page in your portal.
Select the Real-time and always on method:
A helm command will be displayed, with default values already filled out (e.g. your Port client ID, client secret, etc).
Copy the command, replace the placeholders with your values, then run it in your terminal to install the integration.

BaseUrl & webhook configuration

AppHost deprecation

integration.config.appHost is deprecated: Please use liveEvents.baseUrl for webhook URL settings instead.

In order for the Backstage integration to update the data in Port on real-time changes in Backstage, you need to specify the liveEvents.baseUrl parameter. The liveEvents.baseUrl parameter should be set to the url of your Backstage integration instance. Your integration instance needs to have the option to setup webhooks via http requests/recieve http requests , so please configure your network accordingly.

Debugging local integrations

To test webhooks or live event delivery to your local environment, expose your local pod or service to the internet using ngrok:

ngrok http http://localhost:8000

This will provide a public URL you can use for webhook configuration and external callbacks during development.

If liveEvents.baseUrl is not provided, the integration will continue to function correctly. In such a configuration, to retrieve the latest information from the target system, the scheduledResyncInterval parameter has to be set, or a manual resync will need to be triggered through Port's UI.

Scalable Mode for Large Integrations

If you are deploying the integration at scale and want to decouple the resync process from the live events process (recommended for large or high-throughput environments), you can enable scalable mode by adding the following flags to your Helm install command:

  --set workload.kind="CronJob"  \
  --set workload.cron.resyncTimeoutMinutes=60  \
  --set scheduledResyncInterval="'*/60 * * * *'"  \
  --set liveEvents.worker.enabled=true

For details about the available parameters for the installation, see the table below.

This table summarizes the parameters used for the installation.
Note the parameters specific to this integration, they are last in the table.

Parameter	Description	Required
`port.clientId`	Your Port client id, used to identify your account	✅
`port.clientSecret`	Your Port client secret, used to identify your account	✅
`port.baseUrl`	Your Port API URL - `https://api.getport.io` for EU, `https://api.us.getport.io` for US	✅
`initializePortResources`	Default: `true`. When `true`, the integration will create default blueprints and configuration mapping	❌
`sendRawDataExamples`	Default: `true`. Enable sending raw data examples from the third party API to Port for testing and managing the integration mapping	❌
`integration.identifier`	The integration's identifier, used to reference the integration when using Port's API	✅
`integration.type`	The integration type, used to denote the integrated tool/platform	✅
`integration.eventListener.type`	The method used to listen to events from the 3rd party tool (`POLLING` or `KAFKA`)	✅
`integration.secrets.backstageToken`	The Backstage token used to authenticate Port to Backstage	✅
`integration.config.backstageUrl`	The URL of the Backstage instance, including the port of the Backend API (usually 7007)	✅

This installation method will run the integration once and then exit, this is useful for scheduled ingestion of data.

The integration will run as a workflow in your CI/CD pipeline.

Go to the Backstage data source page in your portal.

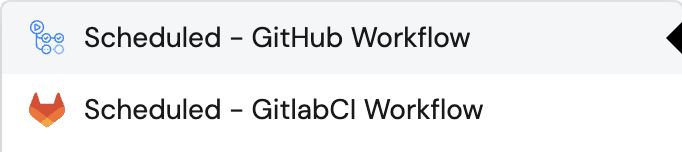

Select the Scheduled method using your preferred CI/CD tool.
Copy the workflow contents into a new workflow in your CI/CD tool. Make sure to:
- Create the necessary secrets in your CI/CD tool.
- Replace the placeholders in the workflow with your own values.

Configuration

Port integrations use a YAML mapping block to ingest data from the third-party api into Port.

The mapping makes use of the JQ JSON processor to select, modify, concatenate, transform and perform other operations on existing fields and values from the integration API.

Default mapping configuration

This is the default mapping configuration for this integration:

Default mapping configuration (Click to expand)

resources:
- kind: component
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .metadata.identifier
        title: .metadata.title // .metadata.name
        blueprint: '"component"'
        properties:
          type: .spec.type
          lifecycle: .spec.lifecycle
          language: .spec.language
          description: .metadata.description
          labels: .metadata.labels
          annotations: .metadata.annotations
          links: .metadata.links
          tags: .metadata.tags
        relations:
          owningUser: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("user:"))) | .targetRef
          owningGroup: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("group:"))) | .targetRef
          system: '"system:" + (.metadata.namespace // "default") + "/" + .spec.system'
          subcomponentOf: .relations[] | select(.type == "subcomponentOf" and (.targetRef | startswith("component:"))) | .targetRef
          providesApis: .relations[] | select(.type == "providesApi" and (.targetRef | startswith("api:"))) | .targetRef
          consumesApis: .relations[] | select(.type == "consumesApi" and (.targetRef | startswith("api:"))) | .targetRef
          dependsOnComponent: .relations[] | select(.type == "dependsOn" and (.targetRef | startswith("component:"))) | .targetRef
          dependsOnResource: .relations[] | select(.type == "dependsOn" and (.targetRef | startswith("resource:"))) | .targetRef
- kind: API
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .metadata.identifier
        title: .metadata.title // .metadata.name
        blueprint: '"api"'
        properties:
          type: .spec.type
          lifecycle: .spec.lifecycle
          definition: .spec.definition | tostring
          definitionOpenAPI: if .spec.type == "open-api" then .spec.definition else null end
          definitionAsyncAPI: if .spec.type == "async-api" then .spec.definition else null end
          definitionGRPC: if .spec.type == "grpc" then .spec.definition else null end
          definitionGraphQL: if .spec.type == "graphql" then .spec.definition else null end
          description: .metadata.description
          labels: .metadata.labels
          annotations: .metadata.annotations
          links: .metadata.links
          tags: .metadata.tags
        relations:
          owningUser: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("user:"))) | .targetRef
          owningGroup: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("group:"))) | .targetRef
          system: '"system:" + (.metadata.namespace // "default") + "/" + .spec.system'
- kind: group
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .metadata.identifier
        title: .metadata.title // .metadata.name
        blueprint: '"group"'
        properties:
          description: .metadata.description
          type: .metadata.type
          email: .metadata.email
          labels: .metadata.labels
          annotations: .metadata.annotations
          links: .metadata.links
          tags: .metadata.tags
        relations:
          parent: .relations[] | select(.type == "childOf" and (.targetRef | startswith("group:"))) | .targetRef
          members: .relations[] | select(.type == "hasMember" and (.targetRef | startswith("user:"))) | .targetRef
- kind: user
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .metadata.identifier
        title: .metadata.title // .metadata.name
        blueprint: '"user"'
        properties:
          email: .metadata.email
          description: .metadata.description
          labels: .metadata.labels
          annotations: .metadata.annotations
          links: .metadata.links
          tags: .metadata.tags
- kind: resource
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .metadata.identifier
        title: .metadata.title // .metadata.name
        blueprint: '"resource"'
        properties:
          type: .spec.type
          description: .metadata.description
          labels: .metadata.labels
          annotations: .metadata.annotations
          links: .metadata.links
          tags: .metadata.tags
        relations:
          owningUser: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("user:"))) | .targetRef
          owningGroup: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("group:"))) | .targetRef
          system: '"system:" + (.metadata.namespace // "default") + "/" + .spec.system'
          dependsOnResource: .relations[] | select(.type == "dependsOn" and (.targetRef | startswith("resource:"))) | .targetRef
          dependsOnComponent: .relations[] | select(.type == "dependsOn" and (.targetRef | startswith("component:"))) | .targetRef
- kind: system
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .metadata.identifier
        title: .metadata.title // .metadata.name
        blueprint: '"system"'
        properties:
          description: .metadata.description
          labels: .metadata.labels
          annotations: .metadata.annotations
          links: .metadata.links
          tags: .metadata.tags
        relations:
          owningUser: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("user:"))) | .targetRef
          owningGroup: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("group:"))) | .targetRef
          domain: .relations[] | select(.type == "partOf" and (.targetRef | startswith("domain:"))) | .targetRef
- kind: domain
  selector:
    query: 'true'
  port:
    entity:
      mappings:
        identifier: .metadata.identifier
        title: .metadata.title // .metadata.name
        blueprint: '"domain"'
        properties:
          description: .metadata.description
          labels: .metadata.labels
          annotations: .metadata.annotations
          links: .metadata.links
          tags: .metadata.tags
        relations:
          owningUser: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("user:"))) | .targetRef
          owningGroup: .relations[] | select(.type == "ownedBy" and (.targetRef | startswith("group:"))) | .targetRef

Limitations

Currently, the integration does not support custom entity kinds.

Examples

To view and test the integration's mapping against examples of the third-party API responses, use the jq playground in your data sources page. Find the integration in the list of data sources and click on it to open the playground.

Additional examples of blueprints and the relevant integration configurations:

Component

Component blueprint (click to expand)

{
  "identifier": "component",
  "title": "Component",
  "icon": "Cloud",
  "schema": {
    "properties": {
      "type": {
        "title": "Type",
        "type": "string"
      },
      "lifecycle": {
        "title": "Lifecycle",
        "type": "string"
      },
      "language": {
        "type": "string",
        "title": "Language"
      },
      "description": {
        "type": "string",
        "format": "markdown",
        "title": "Description"
      },
      "labels": {
        "type": "object",
        "title": "Labels"
      },
      "annotations": {
        "type": "object",
        "title": "Annotations"
      },
      "links": {
        "type": "array",
        "items": {
          "format": "url",
          "type": "string"
        },
        "title": "Links"
      },
      "tags": {
        "type": "array",
        "title": "Tags"
      }
    },
    "required": []
  },
  "calculationProperties": {}
}

Mapping configuration (click to expand)

createMissingRelatedEntities: true
deleteDependentEntities: true
resources:
  - kind: component
    selector:
      query: "true"
    port:
      entity:
        mappings:
          identifier: .metadata.identifier
          title: .metadata.title // .metadata.name
          blueprint: '"component"'
          properties:
            type: .spec.type
            lifecycle: .spec.lifecycle
            language: .spec.language
            description: .metadata.description
            labels: .metadata.labels
            annotations: .metadata.annotations
            links: .metadata.links
            tags: .metadata.tags

Group

Group blueprint (click to expand)

{
  "identifier": "group",
  "title": "Group",
  "icon": "TwoUsers",
  "schema": {
    "properties": {
      "type": {
        "title": "Type",
        "type": "string"
      },
      "email": {
        "title": "Email",
        "type": "string",
        "format": "email"
      },
      "description": {
        "type": "string",
        "format": "markdown",
        "title": "Description"
      },
      "labels": {
        "type": "object",
        "title": "Labels"
      },
      "annotations": {
        "type": "object",
        "title": "Annotations"
      },
      "links": {
        "type": "array",
        "items": {
          "format": "url",
          "type": "string"
        },
        "title": "Links"
      },
      "tags": {
        "type": "array",
        "title": "Tags"
      }
    },
    "required": []
  },
  "calculationProperties": {}
}

Mapping configuration (click to expand)

createMissingRelatedEntities: true
deleteDependentEntities: true
resources:
  - kind: group
    selector:
      query: 'true'
    port:
      entity:
        mappings:
          identifier: .metadata.identifier
          title: .metadata.title // .metadata.name
          blueprint: '"group"'
          properties:
            description: .metadata.description
            type: .metadata.type
            email: .metadata.email
            labels: .metadata.labels
            annotations: .metadata.annotations
            links: .metadata.links
            tags: .metadata.tags

Overview​

Supported Resources​

Prerequisites​

Create a Backstage token​

Setup​

Prerequisites

BaseUrl & webhook configuration

Scalable Mode for Large Integrations

Configuration​

Default mapping configuration​

Limitations​

Examples​

Component​

Group​

Overview

Supported Resources

Prerequisites

Create a Backstage token

Setup

Configuration

Default mapping configuration

Limitations

Examples

Component

Group
